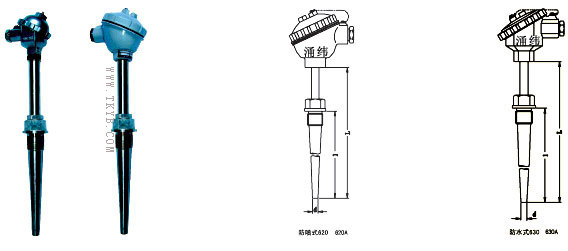

固定螺纹锥形式热电偶
固定螺纹式锥形热电偶选型一览表
| 产品型号 |
分度号 |
温度范围 ℃ |
热响应时间 |
保护管材料 |
规 格(mm) |
| d |
L x l |
| WRM-620
WRM2-620 |
N |
0-800 |
<90S |
1Cr18Ni9Ti |
Ø15 |
300x150
350x200
400x250
450x300
500x350
550x400
650x500
|
| 0-1000 |
0Cr25Ni20 |
| WRM-620G
WRM2-620G |
0-800 |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-620
WRN2-620 |
K |
0-800 |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-620G
WRN2-620G |
0-800 |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRE-620
WRE2-620 |
E |
0-700 |
1Cr18Ni9Ti |
| WRE-620G
WRE2-620G |
| WRC-620
WRC2-620 |
T |
0-350 |
1Cr18Ni9Ti |
| WRC-620G
WRC2-620G |
| WRF-620
WRF2-620 |
J |
0-600 |
1Cr18Ni9Ti |
| WRF-620G
WRF2-620G |
| WRM-630
WRM2-630 |
N |
0-800 |
<90S |
1Cr18Ni9Ti |
Ø15 |
| 0-1000 |
0Cr25Ni20 |
| WRM-630G
WRM2-630G |
0-800 |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-630
WRN2-630 |
K |
0-800 |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-630G
WRN2-630G |
0-800 |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRE-630
WRE2-630 |
E |
0-700 |
1Cr18Ni9Ti |
| WRE-630G
WRE2-630G |
| WRC-630
WRC2-630 |
T |
0-350 |
1Cr18Ni9Ti |
| WRC-630G
WRC2-630G |
| WRF-630
WRF2-630 |
J |
0-600 |
1Cr18Ni9Ti |
| WRF-630G
WRF2-630G |

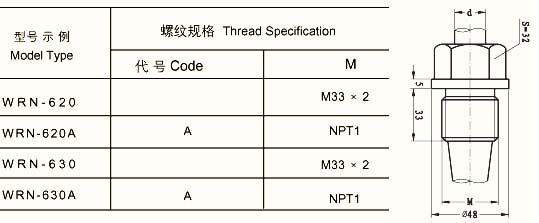

锥形热电偶螺纹规格
1)型号620、620G为防喷式，防护等级IP65；
型号630、630G为防水式，防护等级IP65；
2）保护管其余材质根据协议订货；
3）公称压力为<30MPa
|
