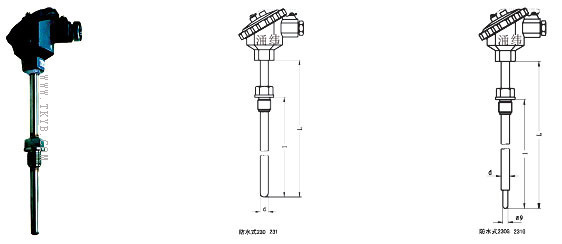

固定螺纹式热电偶
防水式固定螺纹式热电偶选型一览表
| 产品型号 |
分度号 |
温度范围 ℃ |
热响应时间 |
保护管材料 |
规 格(mm) |
| d |
L x l |
| WRM-230
WRM2-230 |
N |
0-800 |
<90S |
1Cr18Ni9Ti |
Ø16 |
300x150
350x200
400x250
450x300
550x400
650x500
900x750
1150x1000
1650x1500
2150x2000
|
| 0-1000 |
0Cr25Ni20 |
| WRM-230G
WRM2-230G |
0-800 |
<24S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-230
WRN2-230 |
K |
0-800 |
<90S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-230G
WRN2-230G |
0-800 |
<24S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRE-230
WRE2-230 |
E |
0-700 |
<90S |
1Cr18Ni9Ti |
| WRE-230G
WRE2-230G |
<24S |
| WRC-230
WRC2-230 |
T |
0-350 |
<90S |
1Cr18Ni9Ti |
| WRC-230G
WRC2-230G |
<24S |
| WRF-230
WRF2-230 |
J |
0-600 |
<90S |
1Cr18Ni9Ti |
| WRF-230G
WRF2-230G |
<24S |
| WRM-231
WRM2-231 |
N |
0-800 |
<120S |
1Cr18Ni9Ti |
Ø20 |
| 0-1000 |
0Cr25Ni20 |
| WRM-231G
WRM2-231G |
0-800 |
<24S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-231
WRN2-231 |
K |
0-800 |
<120S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-231G
WRN2-231G |
0-800 |
<24S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRE-231
WRE2-231 |
E |
0-700 |
<120S |
1Cr18Ni9Ti |
| WRE-231G
WRE2-231G |
<24S |
| WRC-231
WRC2-231 |
T |
0-350 |
<120S |
1Cr18Ni9Ti |
| WRC-231G
WRC2-231G |
<24S |
| WRF-231
WRF2-231 |
J |
0-600 |
<120S |
1Cr18Ni9Ti |
| WRF-231G
WRF2-231G |
<24S |
螺纹规格
1)型号120、121为防喷式，防护等级IP65；
型号130、131为防水式，防护等级IP65；
2）保护管其余材质根据协议订货；
3）公称压力为10MPa
|
