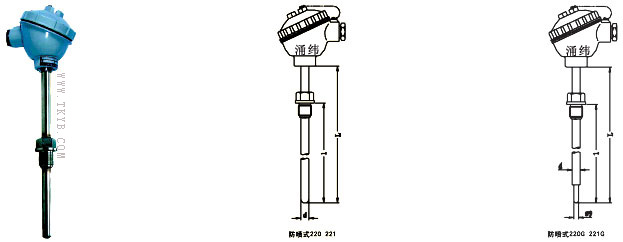

固定螺纹式热电偶
防喷式固定螺纹式热电偶选型一览表
| 产品型号 |
分度号 |
温度范围℃ |
热响应时间 |
保护管材料 |
规 格(mm) |
| d |
L x l |
| WRM-220
WRM2-220 |
N |
0-800 |
<90S |
1Cr18Ni9Ti |
Ø16 |
300x150
350x200
400x250
450x300
550x400
650x500
900x750
1150x1000
1650x1500
2150x2000 |
| 0-1000 |
0Cr25Ni20 |
| WRM-220G
WRM2-220G |
0-800 |
<24S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-220
WRN2-220 |
K |
0-800 |
<90S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-220G
WRN2-220G |
0-800 |
<24S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRE-220
WRE2-220 |
E |
0-700 |
<90S |
1Cr18Ni9Ti |
| WRE-220G
WRE2-220G |
<24S |
| WRC-220
WRC2-220 |
T |
0-350 |
<90S |
1Cr18Ni9Ti |
| WRC-220G
WRC2-220G |
<24S |
| WRF-220
WRF2-220 |
J |
0-600 |
<90S |
1Cr18Ni9Ti |
| WRF-220G
WRF2-220G |
<24S |
| WRM-221
WRM2-221 |
N |
0-800 |
<120S |
1Cr18Ni9Ti |
Ø20 |
| 0-1000 |
0Cr25Ni20 |
| WRM-221G
WRM2-221G |
0-800 |
<24S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-221
WRN2-221 |
K |
0-800 |
<120S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRN-221G
WRN2-221G |
0-800 |
<24S |
1Cr18Ni9Ti |
| 0-1000 |
0Cr25Ni20 |
| WRE-221
WRE2-221 |
E |
0-700 |
<120S |
1Cr18Ni9Ti |
| WRE-221G
WRE2-221G |
<24S |
| WRC-221
WRC2-221 |
T |
0-350 |
<120S |
1Cr18Ni9Ti |
| WRC-221G
WRC2-221G |
<24S |
| WRF-221
WRF2-221 |
J |
0-600 |
<120S |
1Cr18Ni9Ti |
| WRF-221G
WRF2-221G |
<24S |

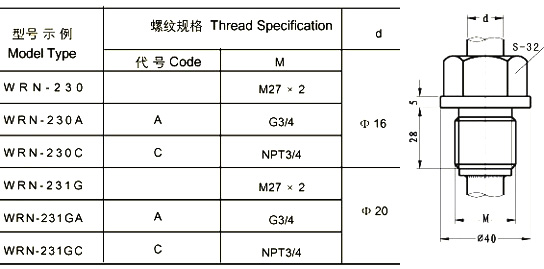

螺纹规格
1)型号120、121为防喷式，防护等级IP65；
型号130、131为防水式，防护等级IP65；
2）保护管其余材质根据协议订货；
3）公称压力为10MPa
|
