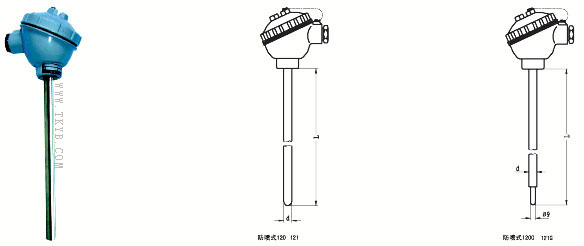

无固定装置热电偶
防喷式选型一览表
| 产品型号 | 分度号 | 温度范围℃ | 热响应时间 | 保护管材料 | 规 格(mm) | |
| d | L | |||||
| WRM-120 WRM2-120 |
N | 0-800 | <90S | 1Cr18Ni9Ti | Ø16 | 150 200 250 300 400 500 750 1000 1500 2000 2150 |
| 0-1000 | 0Cr25Ni20 | |||||
| WRM-120G WRM2-120G |
0-800 | <24S | 1Cr18Ni9Ti | |||
| 0-1000 | 0Cr25Ni20 | |||||
| WRN-120 WRN2-120 |
K | 0-800 | <90S | 1Cr18Ni9Ti | ||
| 0-1000 | 0Cr25Ni20 | |||||
| WRN-120G WRN2-120G |
0-800 | <24S | 1Cr18Ni9Ti | |||
| 0-1000 | 0Cr25Ni20 | |||||
| WRE-120 WRE2-120 |
E | 0-700 | <90S | 1Cr18Ni9Ti | ||
| WRE-120G WRE2-120G |
<24S | |||||
| WRC-120 WRC2-120 |
T | 0-350 | <90S | 1Cr18Ni9Ti | ||
| WRC-120G WRC2-120G |
<24S | |||||
| WRF-120 WRF2-120 |
J | 0-600 | <90S | 1Cr18Ni9Ti | ||
| WRF-120G WRF2-120G |
<24S | |||||
| WRM-121 WRM2-121 |
N | 0-800 | <120S | 1Cr18Ni9Ti | Ø20 | |
| 0-1000 | 0Cr25Ni20 | |||||
| WRM-121G WRM2-121G |
0-800 | <24S | 1Cr18Ni9Ti | |||
| 0-1000 | 0Cr25Ni20 | |||||
| WRN-121 WRN2-121 |
K | 0-800 | <120S | 1Cr18Ni9Ti | ||
| 0-1000 | 0Cr25Ni20 | |||||
| WRN-121G WRN2-121G |
0-800 | <24S | 1Cr18Ni9Ti | |||
| 0-1000 | 0Cr25Ni20 | |||||
| WRE-121 WRE2-121 |
E | 0-700 | <120S | 1Cr18Ni9Ti | ||
| WRE-121G WRE2-121G |
<24S | |||||
| WRC-121 WRC2-121 |
T | 0-350 | <120S | 1Cr18Ni9Ti | ||
| WRC-121G WRC2-121G |
<24S | |||||
| WRF-121 WRF2-121 |
J | 0-600 | <120S | 1Cr18Ni9Ti | ||
| WRF-121G WRF2-121G |
<24S | |||||
型号130、131为防水式，防护等jiIP65；
2）保护管其余材质根据协议订货；
3）公称压力为10MPa
